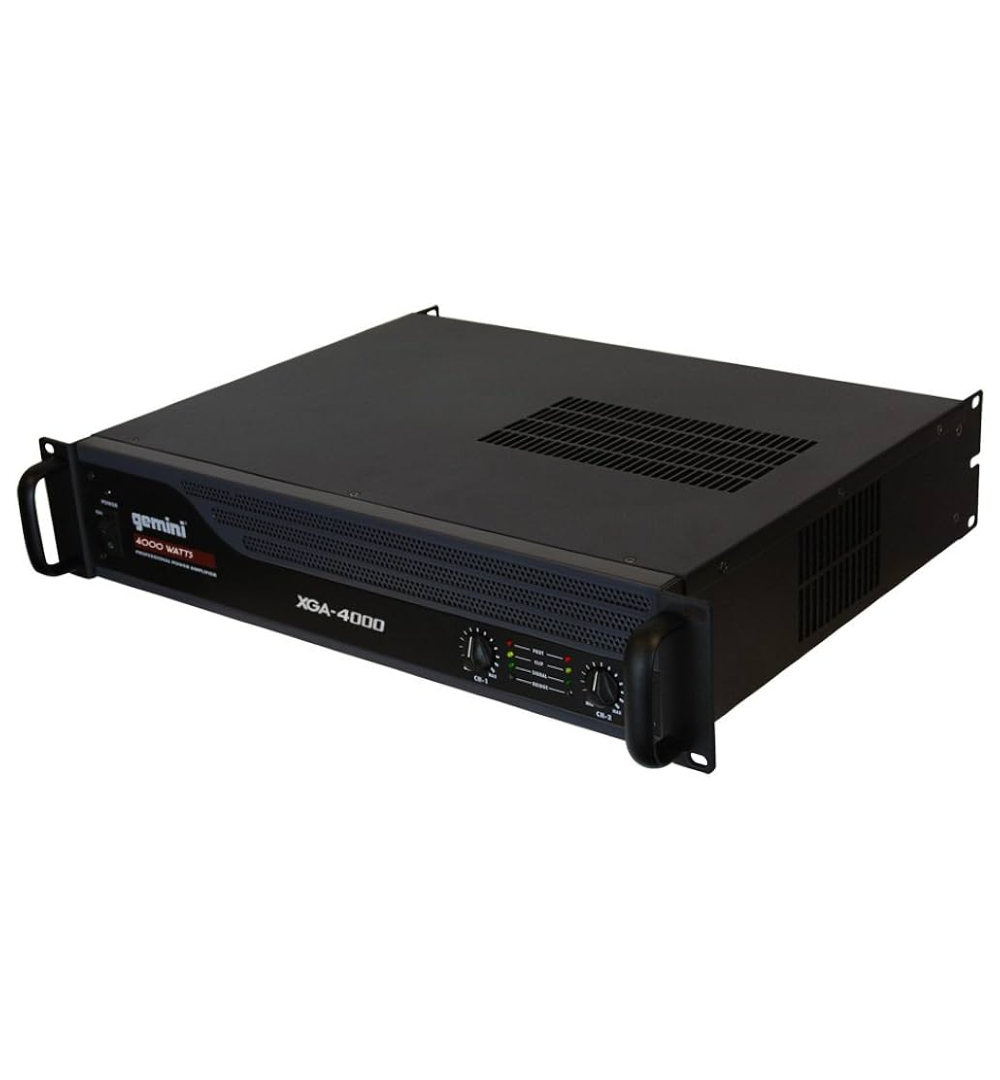

Gemini XGA-4000-U (USED) 4000W 2-Channel Power Amplifier

available at

See All Locations

Low in-store inventory, may be subject to change.

Features
The Gemini XGA-4000 professional power amplifier is designed for live sound reinforcement applications. The device delivers 700W RMS of power which can be configured in different ways including stereo, mono bridge and stereo bridge.

The front panel of this power amplifier features level controls for channels 1 and 2, as well as LED indicators indicating signal, clipping, protection and bypass. Additionally, front and rear vents protect the amplifier against thermal overloads, while fans keep it cool.

The XGA-4000 power amplifier also features a limiter, DC output and short circuit protection, so nothing will disrupt your sound during gigs or rehearsals. Fixings are also integrated into the front panel to allow rock or cabinet mounting.

Features:

4000 Watts high IPP* power output to drive professional loudspeakers without clipping

Front-to-back airflow and cooling fan for thermal stability and reliability

Balanced XLR and ¼ » (6.5 mm jack) and unbalanced RCA inputs and 3 Speakon outputs for channels A/B/Bridge

Limiter circuit switch for amp output protection

Stereo and Mono Bridge

Variable speed fan for low noise

Full front panel LED indicators including signal, clip, protect and bridge

5-Way Link Banana Plug Channel Outputs

Bridge control switch

DC output protection and short circuit protection

Frequency response from 10 Hz to 50 kHz at 1.5 dB

Floor lift switch

Specifications:

Total harmonic distortion: less than 0.1%

Input sensitivity and impedance: 0.77v

Signal to noise (20 Hz – 20 kHz) > 90 dB

Frequency response: 10Hz ~ 50kHz ±1.5dB

Signal to noise (LF / HF): >90dB

THD (LF/HF): > 0.1%

Input sensitivity: 0.77v

Maximum input level: 21dBv/9v

Input impedance: 20K

Fuse 5mm x 20mm: AC 115V/230V 50~60Hz

8 OHM Stereo Output: 2 x 250 W RMS

4 OHM Stereo Output: 2 x 350 W RMS

8 OHM bridged output: 700 W RMS

Model:	XGA-4000-U
Manufacturer:	Gemini
