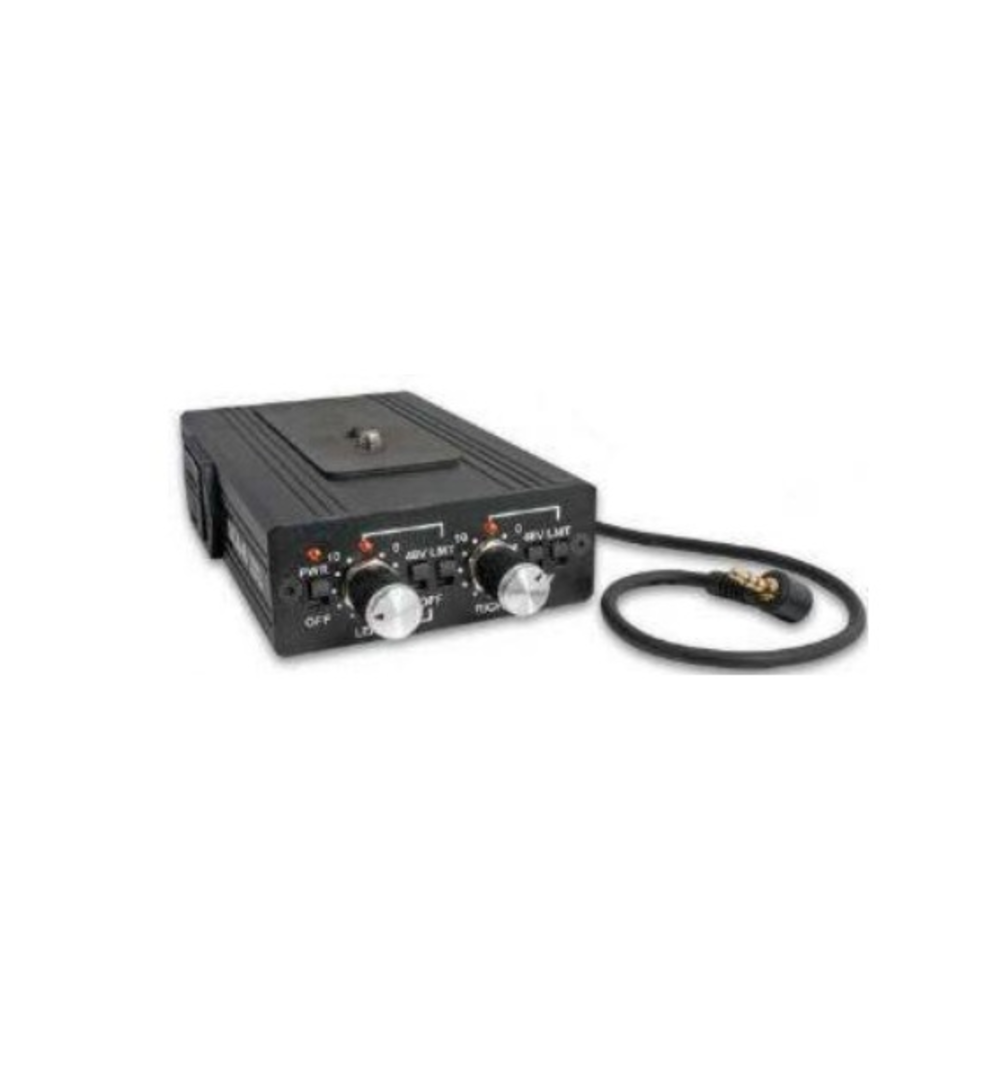

Used and Discounted > Beachtek DXA-8-U (USED) Two channel, Battery-powered Microphone Adapter with Built in Preamplifiers, Limiters and Dual Phantom Power.

Beachtek DXA-8-U (USED) Two channel, Battery-powered Microphone Adapter with Built in Preamplifiers, Limiters and Dual Phantom Power.

available at

See All Locations

Low in-store inventory, may be subject to change.

Features
The DXA-8 is a two channel, battery-powered microphone adapter with built in preamplifiers, limiters and dual phantom power.

Features

Dual no fuss limiters with LED indicators

Dual Infinitely adjustable gain

Dual switchable 48 volt phantom power

Dual XLR balanced inputs

One unbalanced mini-jack input

Transformer isolated inputs and outputs

Uses one 9 volt battery

LED battery power indicator

Sturdy extruded aluminum chassis

Easily mounts to camera and tripod

Extremely easy to set up and use

Professional Sound

Specifications

Gain: Adjustable from -10 dB to +15 dB

Frequency response: 20 Hz to 20 KHz, +/-3 dB (limiter on)

Output noise level: less than -80 dBu

Input level before clipping: +1.5 dBu (min gain with limiter on) -27 dBu (max gain with limiter on)

Maximum output level : -30 dBu (limiter off) -36 dBu (limiter on)

Phantom Power: Dual regulated 48 volt power supplies Current to 14 mA (direct short)

Battery type / duration: One standard 9 volt alkaline battery 10 hours typical (no phantom) LED battery indicator

Current draw: 35 mA typical (no phantom)

Case: Powder coated aluminum

Dimensions: 5.25" L x 3.5" W x 1.25" H

Weight: 16 oz

Model:	DXA-8-U
Manufacturer:	Beachtek
