Used and Discounted > Beachtek DXA-10-U (USED) Two Channel, Battery-Powered Mic Preamp With Built-in Phantom Power

Beachtek DXA-10-U (USED) Two Channel, Battery-Powered Mic Preamp With Built-in Phantom Power

available at

See All Locations

Low in-store inventory, may be subject to change.

Features

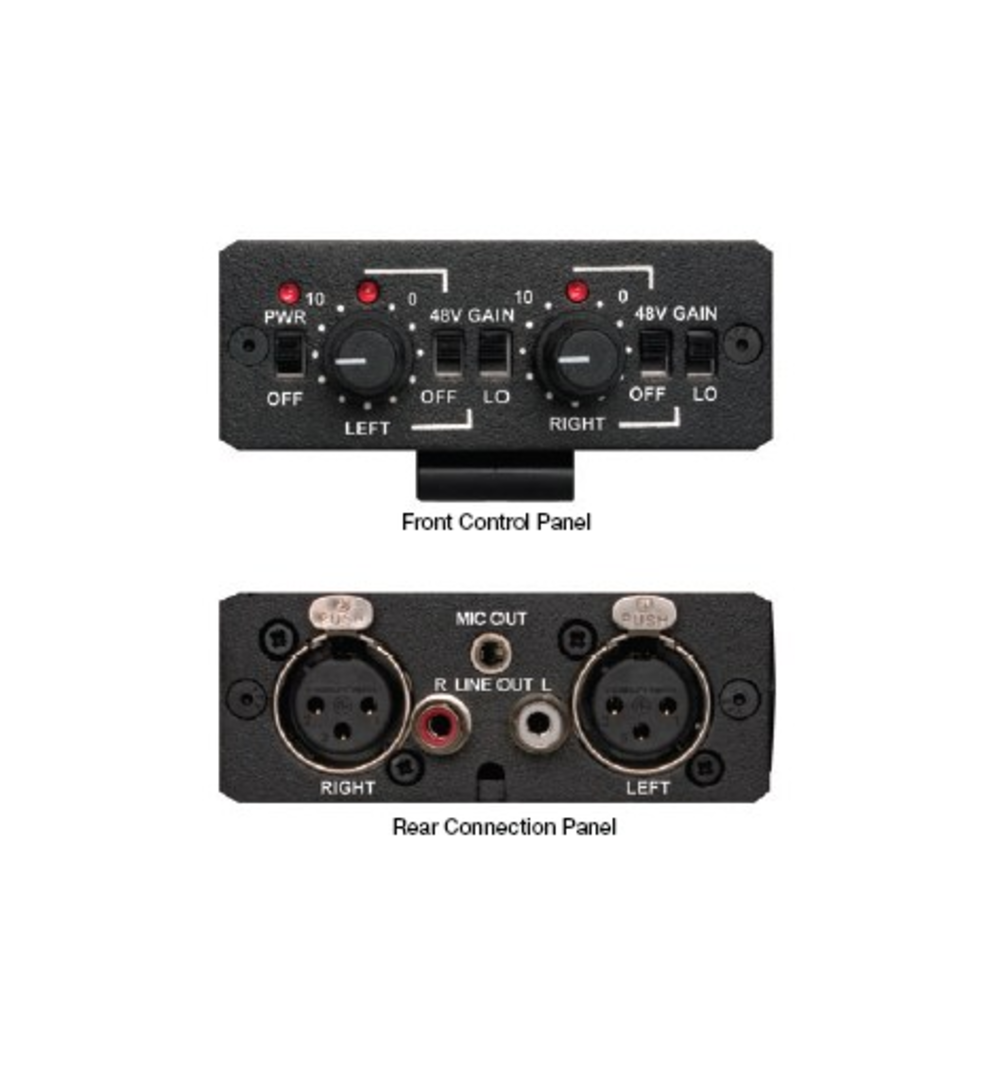

The DXA-10 is a two channel, battery-powered microphone preamplifier with built-in phantom power.

Features

Two balanced XLR microphone inputs

Two line level RCA outputs

Mic level stereo mini-jack output

Dual low noise preamps with +/- 15 volt rails for plenty of headroom

High / Low gain settings for dynamic and condenser type microphones

20 Hz to 20 kHz audio bandwidth

Dual switchable 48 volt phantom power for condenser microphones Easily replaceable 9 volt battery

LED battery indicator Removable belt clip for easy portability

Sturdy extruded aluminum chassis

Superb sound

Specifications

Gain: Switchable: HI (60 dB); LO (30 dB)

Frequency Response: 20 Hz to 20 KHz, -1 dB

THD + N: less than 0.03 @ 1 kHZ

Signal-To-Noise Ration: 66db @ 1 kHZ, +4 dBu output

Maximum output level: +18 dBu (RCA output) -37 dBu (MIC output)

Phantom Power: Dual regulated 48 volt power supplies Current to 14 mA (direct short)

Battery type / duration: One standard 9 volt alkaline battery 4 hours typical (no phantom)

Current draw: 120 mA (no phantom)

Case: Powder coated aluminum

Dimensions: 5.25" L x 3.5" W x 1.25" H

Weight: 14 oz.

Model:	DXA-10-U
Manufacturer:	Beachtek
